– Gummiöverdrag

Gummiöverdrag till tryckströmställare i utsatta miljöer

Info
Ladda ner

Gummiöverdrag till tryckströmställare för applikationer där omkopplaren sitter i placerad i utsatta miljöer. Mycket tålig design som skyddar från till exempel damm, solljus, de flesta syror och smörjolja.

APM Hexseal har täckningshuvar i två olika varianter. En med sexkantsmutter och en helt rund.
Normalt grå, men finns även i andra kulörer.

Utförande med gänga och silikongummi som tätande material.

  • Upp till IP68 i tätningsgrad
  • Motstår 103 bar externt tryck.

Tekniska data

Mutter Mässing, förnicklad
Material Silikon A-A-59588, Class 3A, GR50
Temperaturområde -75° C to +204° C

Dimensioner

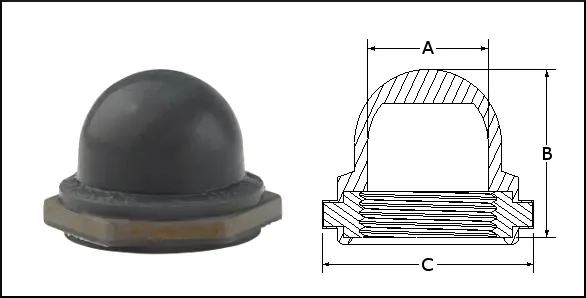

push1

Artikelnummer MIL-nr Gänga Max knapphöjd Innerdiameter
(A)		 Höjd (B) Nyckelvidd/
Ytterdiameter (C)		 Måttenhet
1231/8 - 3/8-27 UNS-2B 10.08mm 7.62mm 16.59mm 12.70 mm Tum
1231/35 - 3/8-32 UNEF-2B 10.62mm 7.62mm 17.20mm 12.70 mm Tum
1231/51 - 3/8-27 UNS-2B 16.88mm 7.95mm 22.23mm 12.70 mm Tum
1238/1 SS - 15/32-32 UNS-2B 7.77mm 10.72mm 25.60mm 19.05mm Tum
N3030 M5423/07-01 15/32-32 UNS-2B 7.14mm 10.72mm 13.89mm 15.88mm Tum
N3030 RFI M5423/07-06 15/32-32 UNS-2B 7.14mm 10.72mm 13.89mm 15.88mm Tum
N3040 M5423/07-04 5/8-24 UNEF-2B 7.14mm 13.08mm 15.47mm 19.05mm Tum
N5040 M5423/10-03 1/4-40 UNS-2B 3.58mm 4.78mm 7.95mm 9.53mm Tum
N5040G M5423/10-01 1/4-32 UNEF-2B 5.16mm 4.78mm 7.95mm 9.53mm Tum
N5040R M5423/10-02 1/4-40 UNS-2B 5.16mm 4.78mm 7.95mm 9.53mm Tum
N5045 - 8-40 UNS-2B 4.78mm 3.05mm 7.54mm 6.35mm Tum
NC3030 M5423/07-02 15/32-32 UNS-2B 11.13mm 10.72mm 18.26mm 15.88mm Tum
NC3030 7/16-28 - 7/16-28 UNEF-2B 11.13mm 9.50mm 18.26mm 15.88mm Tum
NC3030FL - 15/32-32 UNS-2B 13.21mm 8.74mm 20.24mm 15.88mm Tum
NH3030 M5423/07-03 1/2-32 UN-2B 7.14mm 10.72mm 13.89mm 15.88mm Tum
NC3030H M12x1 - M12 x 1 6H 11.90mm 10.72mm 18.64mm 15.88 mm Metrisk

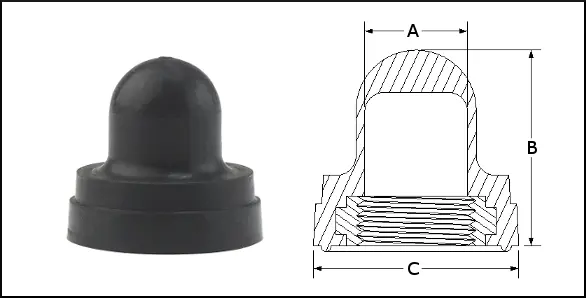

push-2

Artikelnummer MIL-nr Gänga Max knapphöjd Innerdiameter (A) Höjd (B) Ytterdiameter (C) Måttenhet
C1221/22 - 3/8-24 UNF-2B 8.40mm 8.13mm 15.47mm 16.26mm Tum
C1221/24 - 3/8-27 UNS-2B 10.64mm 7.62mm 15.47mm 16.26mm Tum
C1221/25 - 3/8-27 UNS-2B 10.64mm 7.62mm 15.47mm 16.26mm Tum
C1221/21 M10 - M10 x 1 6H 8.40mm 8.13mm 15.47mm 16.26mm Metrisk
C1221/27 - M11 x 1 6H 6.78mm 8.13mm 15.47mm 18.29mm Metrisk

Tillverkare: APM Hexseal
