With their robust stainless steel, brass or anodised aluminium housings, these innovatively designed switches are protected to IK10 impact resistance and IP67 sealing requirements, which makes them ideal for use in exposed public buildings and areas.
Series 82 now also include 24VDC red/green bi-colour illumination on both ring and dot illuminated versions.
NEW! As an option it is now also possible to get push button and indicator in the more durable stainless steel material SUS 316L, which is very suitable for the toughest applications. Fits, for example, perfectly in the food, beverage and marine environment. Some versions are also available with overmoulded M12-connector which provides a complete front and rear IP67 protection.
Technical data
| Contact: | NO/NC |
| Switch rating: | 3 A / 240 VAC, 1A / 24V DC |
| Contact resistance (max): | 50 mOhm |
| Lifetime | |
| - Mechanical (min): | 1.000.000 cycles momentary 500.000 cycles alternating |
| - Electrical (min): | 100.000 cycles |
| Operating temperature: | -30°C - +70°C |
| Front protection: | IP65, IP67, according IEC 60529 |
| Impact resistance: | IK10, according to IEC 62262 |
| Approvals: | CE, CB, UL, C UL, CCC |

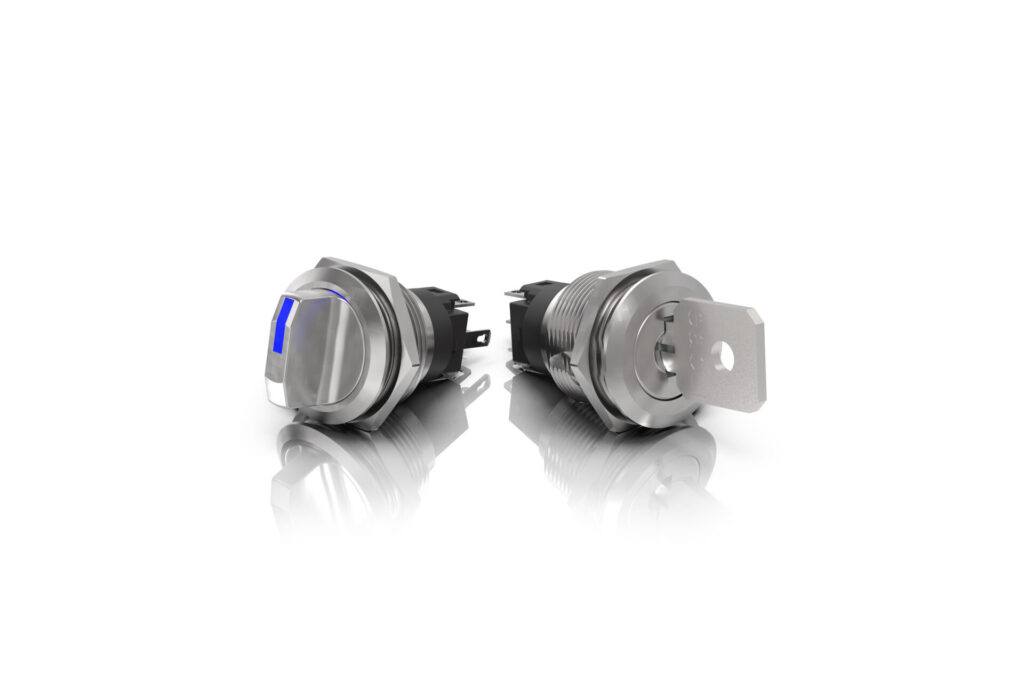

Series 82
Dimensions
Part number code
Series 82 - M12-contact
Dimensions - M12-contact
Part number code - M12-contact
